Cutter suction dredger
ClassifyCutter suction dredger
Kehan High Power Suction Dredger KHCSD300
【Product Description】
Cutter suction dredgers, characterized by strong geographical environment adaptability, a simple structure, easy maintenance, reliable performance, long service life, low costs and large workload (1,000 to 4,000 cubic meters per day) are ideal choice for sand field and river sand mining. It can also be used in salt mining in salt lakes, offshore and river dredging, hard riverbed mining, waterway improvement and development. Dug sand after screening and separation is pure and inclusion-free, which is an ideal choice for the building industry.
Cutter suction dredgers can be installed with ore dressing equipment to extract gold, iron ore and other minerals, featuring a high degree of automation, high extraction accuracy and large processing capacity. It leads the industry both at home and abroad.
【Technical Parameters】
|
KHCSD-300 Cutter Suction Dredger |
|||
|
OA Length(Ladder included) |
27 m |
Dredging Capacity |
1200 m3/hr |
|
OA Width |
5.4 m |
Max. Dredging Depth |
12 m |
|
OA Height |
1.6 m |
Suction Pipe Dia. |
350 mm |
|
Full-loaded Draft |
1 m |
Discharge Pipe Dia. |
300 mm |
|
Engine power |
559 kw |
Cutter Head Power |
60 kw |

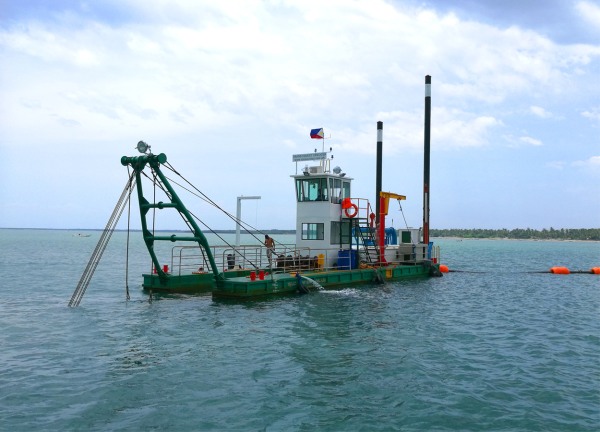

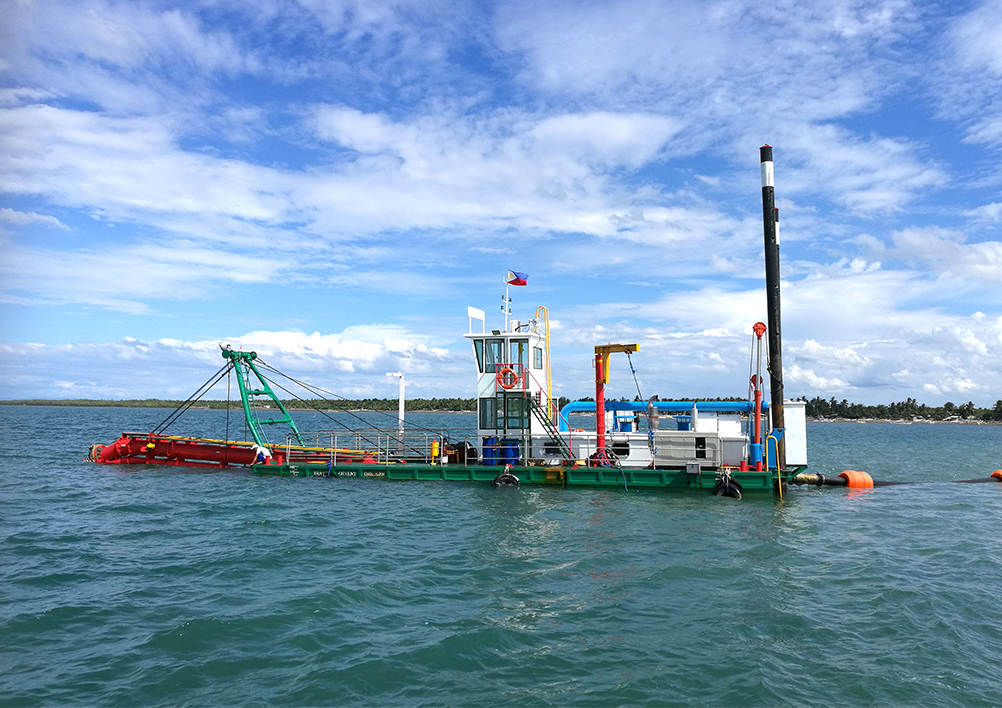

【Photo】
